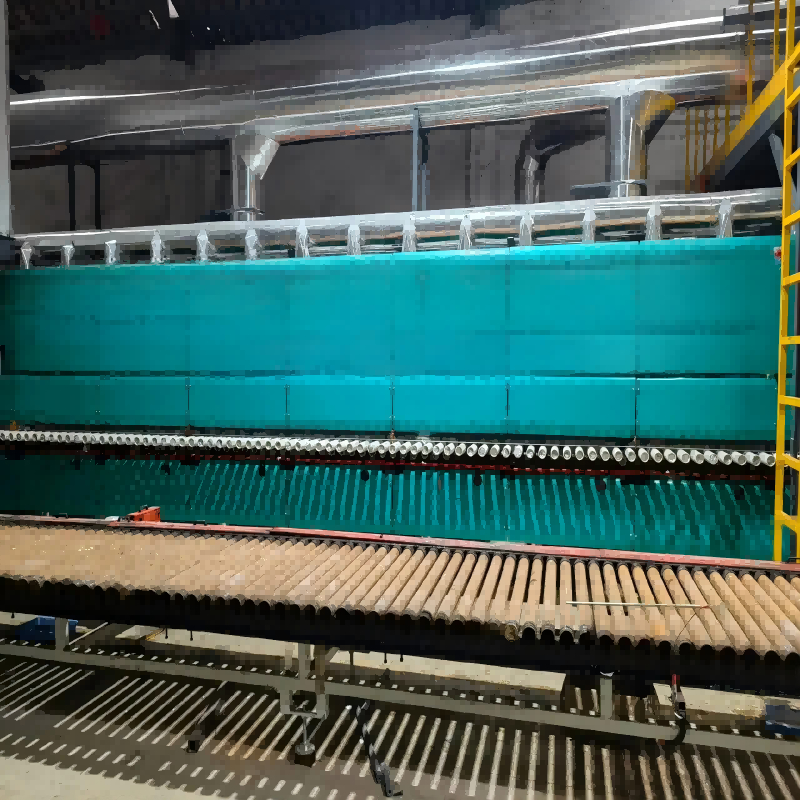

Precision Electric Heat-Treatment Roller Hearth Furnace for Metal Powder Metallurgy

Brief Description

The Precision Electric Heat-Treatment Roller Hearth Furnace for Metal Powder Metallurgy is an industrial continuous furnace designed for controlled thermal processing of metal powders, sintered components, and precision powder-metallurgy parts. It combines electric heating, multi-zone temperature control, and continuous roller conveying to provide stable and uniform heat treatment throughout the production process. The furnace can be configured for processes such as debinding, preheating, sintering, annealing, stress relieving, and controlled cooling, depending on material and production requirements. Independent heating zones allow operators to establish precise temperature profiles for different stages of the process. The roller hearth structure supports continuous production and is suitable for integration with automatic loading and unloading systems. With appropriate atmosphere control, insulation, and exhaust systems, the furnace can be adapted to different metal powder materials and production conditions. Its modular configuration makes it suitable for both standard industrial production and customized powder-metallurgy applications requiring consistent thermal performance and repeatable processing conditions.

Key Features

1. Multi-Zone Precision Temperature Control

The furnace is equipped with independently controlled heating zones, allowing different temperature settings along the furnace length. This configuration enables accurate control of heating, soaking, and cooling stages according to the specific heat-treatment profile of the material. Temperature sensors and automatic control systems continuously monitor operating conditions, helping maintain stable thermal performance and reduce temperature fluctuations during continuous production.

2. Continuous Roller Hearth Conveying

The roller hearth system provides continuous and stable transportation of metal powder metallurgy components through the furnace. Roller speed can be adjusted according to the required heating cycle and production capacity. Compared with batch processing, continuous conveying can support higher production efficiency and more consistent processing conditions. The conveying system can also be integrated with automatic loading, unloading, and material-transfer equipment.

3. Electric Heating and Clean Thermal Processing

Electric heating provides precise and controllable heat input without direct combustion inside the furnace chamber. This makes the system suitable for applications requiring a clean and stable thermal environment. Heating elements can be arranged in different furnace zones to achieve the required temperature distribution. The electrical control system also allows operators to adjust heating parameters according to different materials and production recipes.

4. Controlled Atmosphere and Modular Configuration

For powder-metallurgy applications requiring protection against oxidation or controlled chemical conditions, the furnace can be configured with an appropriate protective or process atmosphere system. Furnace length, heating zones, roller structure, working temperature, atmosphere system, and cooling section can be customized according to product specifications and production requirements. This modular design allows the furnace to be adapted to different powder-metallurgy production lines.

Applications

1. Sintering of Powder Metallurgy Components

The furnace can be used for continuous sintering of metal powder metallurgy parts after compaction or forming. Controlled heating and soaking zones provide the thermal conditions required for densification and metallurgical bonding. The roller conveying system allows components to pass through the furnace continuously, making the equipment suitable for medium- and high-volume production where stable processing conditions and repeatable temperature profiles are important.

2. Heat Treatment of Precision Metal Parts

Precision powder-metallurgy components may require annealing, stress relieving, or other controlled heat-treatment processes after forming and sintering. The furnace provides programmable heating zones and controlled conveying speed to establish repeatable thermal cycles. It can be configured according to the material composition, component dimensions, target temperature, and required residence time, helping manufacturers achieve consistent treatment conditions across production batches.

3. Debinding and Preheating Processes

For powder-metallurgy products manufactured with binders or additives, controlled debinding and preheating can be incorporated into the thermal process. The furnace can provide dedicated temperature zones and exhaust arrangements for gradual removal of volatile components before higher-temperature treatment. Proper process design helps reduce the risk of defects caused by excessive heating rates, uncontrolled gas release, or uneven temperature distribution.

4. Production of Metal Powder Metallurgy Materials

The furnace can be integrated into automated powder-metallurgy production lines for components used in automotive, machinery, electrical, hardware, and industrial applications. Its continuous operation, programmable temperature profile, and configurable atmosphere system make it suitable for different material systems and component geometries. Furnace specifications can be selected according to daily production capacity, product size, process temperature, and required atmosphere conditions.

FAQs

1. What is a roller hearth furnace used for in powder metallurgy?

A roller hearth furnace is used for continuous thermal processing of powder-metallurgy products, including sintering, annealing, debinding, preheating, and stress relieving. Products are transported through different temperature zones on rollers while the furnace maintains the required thermal profile.

2. What is the typical operating temperature of an electric roller hearth furnace?

The operating temperature depends on the material and process. Different powder-metallurgy materials require different sintering or heat-treatment temperatures. The furnace can be designed with suitable heating elements, insulation, temperature-control systems, and atmosphere equipment according to the customer's specific process requirements.

3. Can the furnace use a protective atmosphere?

Yes. The roller hearth furnace can be equipped with a controlled or protective atmosphere system when the process requires protection from oxidation or a specific gas environment. The atmosphere type and flow conditions should be determined according to the material, binder system, and heat-treatment process.

4. Can the roller hearth furnace be customized?

Yes. The furnace can be customized according to product dimensions, production capacity, working temperature, heating-zone configuration, conveying speed, furnace length, atmosphere requirements, cooling method, and automation level. A technical proposal can be developed based on the customer's material characteristics and complete heat-treatment process.
