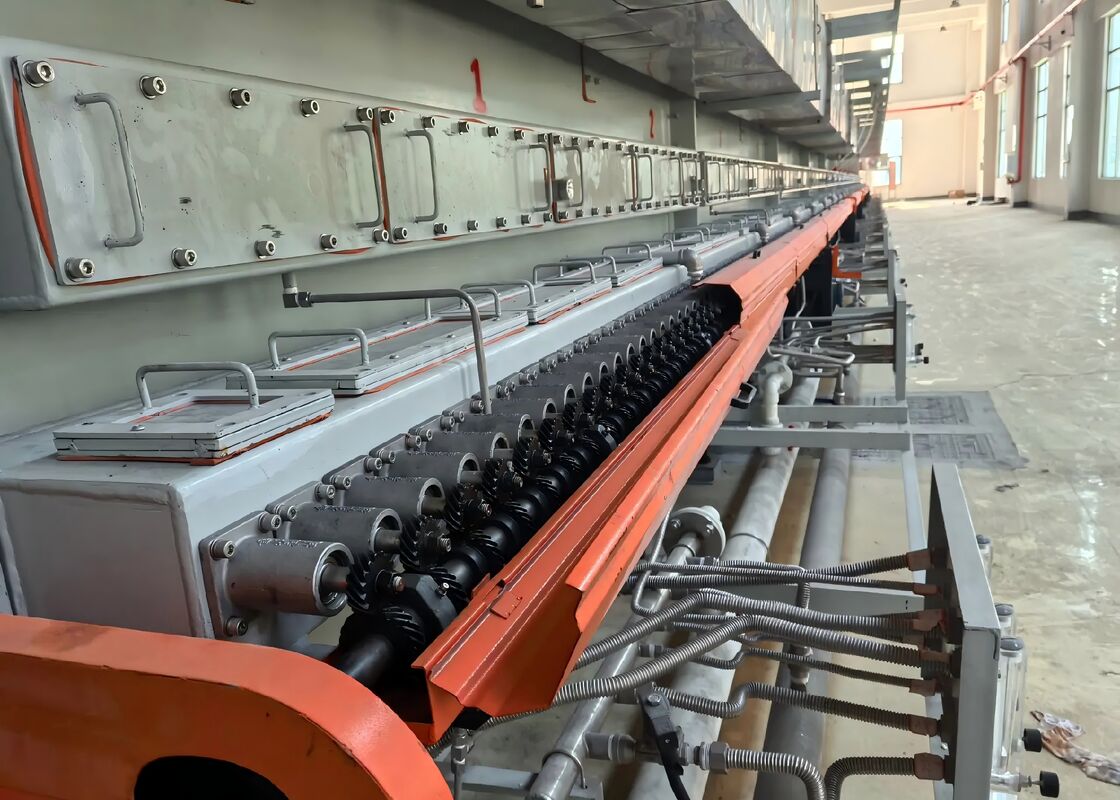

Customizable Multi-Zone Temperature Control Roller Hearth Kiln for Glass Annealing

Brief Description

The Customizable Multi-Zone Temperature Control Roller Hearth Kiln for Glass Annealing is an industrial continuous kiln designed for controlled heating, soaking, and cooling of glass products. The kiln uses a roller hearth conveying system to transport glass smoothly through multiple independently controlled temperature zones. Each zone can be configured according to the required annealing curve, allowing precise control of heating, holding, and cooling conditions. The system is suitable for flat glass, glass panels, architectural glass, and other glass products requiring controlled thermal treatment. Its modular structure allows the kiln length, effective width, heating zones, roller arrangement, and operating temperature to be customized according to product dimensions and production capacity. With automatic temperature regulation, stable material conveying, and an insulated kiln structure, the system supports continuous production while helping maintain consistent annealing conditions and product quality.

Key Features

1. Multi-Zone Independent Temperature Control

The kiln is divided into multiple heating, soaking, and cooling zones, with each zone equipped with independent temperature monitoring and control. Operators can set different temperature profiles according to the glass type, thickness, size, and required annealing process. This configuration provides more precise thermal management throughout the production cycle and helps reduce temperature fluctuations that could affect glass quality.

2. Smooth Roller Hearth Conveying System

The roller hearth system provides continuous and stable transportation of glass products through the kiln. Rollers can be selected and arranged according to the product dimensions, weight, and operating temperature. The conveying speed can also be adjusted to match the required heating and annealing time, making the system suitable for continuous industrial production of different glass products.

3. Customizable Kiln Configuration

The kiln can be customized according to production requirements, including effective kiln width, overall length, heating zones, cooling zones, roller spacing, heating method, and control configuration. This flexibility allows the equipment to be integrated into different glass processing lines. The modular design also facilitates future capacity expansion or process adjustments when production requirements change.

4. Automated Temperature and Process Control

A PLC-based control system can be used to monitor kiln temperature, conveying speed, heating status, and other operating parameters. The control interface allows operators to set and monitor different temperature zones in real time. Automatic regulation helps maintain stable process conditions and reduces the need for continuous manual adjustment during normal production.

Applications

1. Flat Glass Annealing

The roller hearth kiln can be used for controlled annealing of flat glass products after forming or thermal processing. The multi-zone design allows the heating, soaking, and cooling stages to be configured according to glass thickness and product specifications, helping release internal thermal stress and improve the stability of finished glass.

2. Architectural Glass Processing

The system is suitable for architectural glass products requiring controlled thermal treatment, including glass panels and other flat glass components. The continuous roller conveying system allows products to move steadily through the temperature zones while maintaining a controlled thermal profile for consistent processing.

3. Glass Panel and Sheet Production

For glass panels and sheets with different dimensions, the kiln can be customized with an appropriate effective width, roller configuration, heating capacity, and cooling section. Adjustable conveying speed and multi-zone temperature control provide flexibility for processing products with different thermal treatment requirements.

4. Specialty Glass Thermal Treatment

The kiln can also be configured for certain specialty glass products requiring precise heating and cooling conditions. By adjusting the temperature profile, residence time, conveying speed, and zone configuration, the equipment can be adapted to different glass compositions, product sizes, and thermal processing requirements.

FAQs

1. What glass products can be processed in this roller hearth kiln?

The kiln can be configured for various flat and specialty glass products, including flat glass, glass panels, architectural glass, and other products requiring controlled heating, soaking, and cooling. The final configuration should be determined according to the glass composition, thickness, dimensions, production capacity, and required thermal process.

2. Can the temperature zones be customized?

Yes. The number and configuration of temperature zones can be customized according to the required annealing curve. Different zones can have independent temperature settings and control parameters, allowing the heating, holding, and cooling process to be adjusted for different glass products.

3. Can the kiln dimensions and production capacity be customized?

Yes. The effective width, kiln length, number of zones, roller arrangement, heating capacity, and conveying speed can be designed according to the customer's product dimensions and required production capacity. A technical proposal can be prepared after receiving the glass specifications and production requirements.

4. What information is required for a customized quotation?

To design a suitable roller hearth kiln, it is recommended to provide the glass type, product dimensions, glass thickness, maximum product weight, required production capacity, target temperature or annealing curve, heating source, and available installation space. These parameters allow the kiln structure and thermal system to be selected more accurately.
