Prefabricated Tunnel Kiln High Throughput Modular Design Tunnel Furnace

Prefabricated Tunnel Kiln Energy Efficiency High Throughput Modular Design

Overview

A prefabricated tunnel kiln is an advanced thermal processing facility used in various industries for the continuous production of ceramics, bricks, and other materials requiring high-temperature treatment. Unlike traditional kilns, which are built on-site, prefabricated tunnel kilns are assembled from pre-manufactured components, allowing for rapid installation and enhanced quality control. These kilns operate on the principle of counter-current heat exchange, where products move through different temperature zones in a linear path, optimizing thermal efficiency and product quality. This modular design not only reduces construction time but also offers flexibility in customization to meet specific production requirements. Prefabricated tunnel kilns are recognized for their energy efficiency, uniform temperature distribution, and the ability to handle large volumes of products continuously.

Structure

The structure of a prefabricated tunnel kiln consists of several key components:

• Steel Framework: Provides the structural support for the kiln, ensuring stability and durability.
• Insulated Panels: These pre-fabricated panels are assembled to form the walls and roof of the kiln, offering excellent thermal insulation to minimize heat loss.
• Rail System: A continuous rail system runs through the kiln, facilitating the smooth movement of trolleys carrying the products.
• Heating System: This includes burners or electric heating elements distributed along the kiln's length, designed to create different temperature zones for various stages of the firing process.
• Control System: Advanced control systems monitor and regulate the temperature, atmosphere, and movement speed, ensuring optimal conditions for the products.
• Exhaust and Ventilation: Efficient exhaust and ventilation systems remove gases and regulate airflow within the kiln, maintaining a consistent internal environment.

Process Flow

The operation of a prefabricated tunnel kiln can be summarized in the following steps:

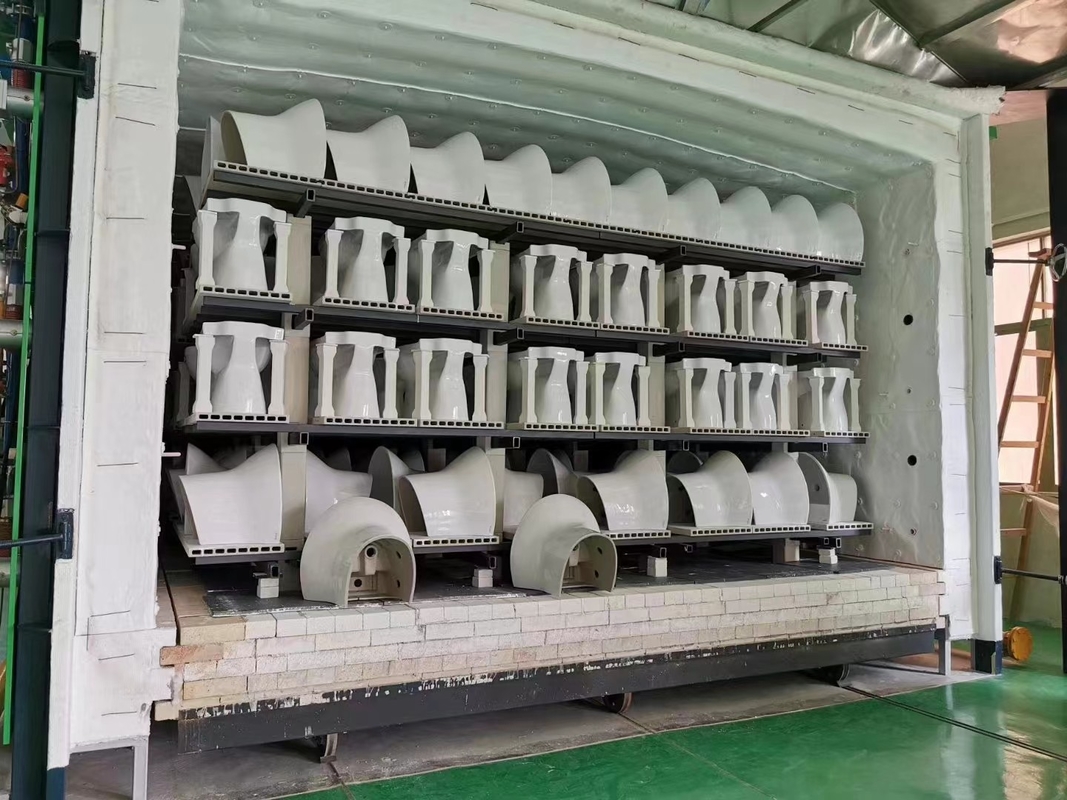

• Loading: Raw materials or pre-formed products are loaded onto trolleys at the kiln's entrance.
• Preheating Zone: Products enter the preheating zone where residual moisture is removed gradually to prevent thermal shock.
• Heating Zone: In this zone, the temperature is increased to the desired level for the firing process, typically ranging from 900°C to 1400°C depending on the material.
• Soaking Zone: Products are held at the peak temperature to ensure uniform heating and complete transformation of materials.
• Cooling Zone: Gradual cooling takes place to avoid cracking or warping, preparing the products for handling and further processing.
• Unloading: Finished products are unloaded at the kiln’s exit, ready for inspection and packaging.

Features

Prefabricated tunnel kilns offer several distinct features:

• Energy Efficiency: Optimized heat exchange and insulation reduce fuel consumption.
• Uniform Temperature Distribution: Ensures consistent product quality across the batch.
• High Throughput: Capable of handling large volumes continuously.
• Modular Design: Facilitates easy assembly, expansion, and maintenance.
• Advanced Controls: Automated systems enhance precision and reliability.
• Flexibility: Adaptable to various product types and production scales.

Applications

Prefabricated tunnel kilns are suitable for a wide range of applications:

• Ceramic Industry: Used for firing tiles, sanitary ware, and refractory materials.
• Brick Manufacturing: Ideal for the mass production of different types of bricks.
• Metallurgical Industry: Employed in the heat treatment of metals and alloys.
• Chemical Industry: Used for processes requiring controlled high-temperature environments.
• Glass Industry: Suitable for annealing and tempering glass products.
